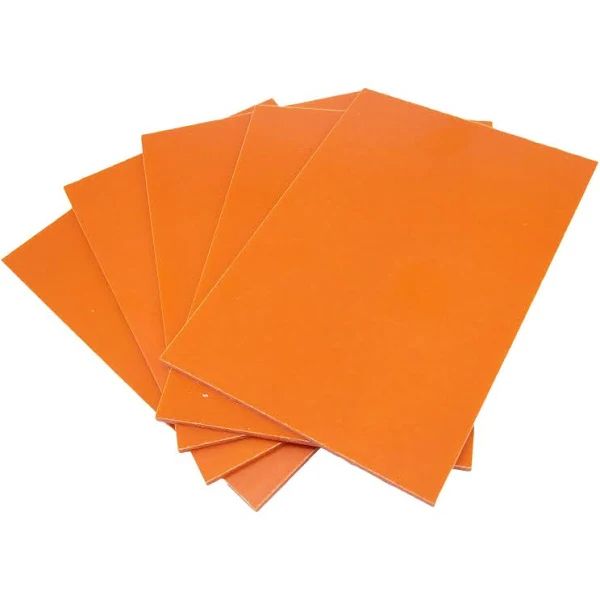

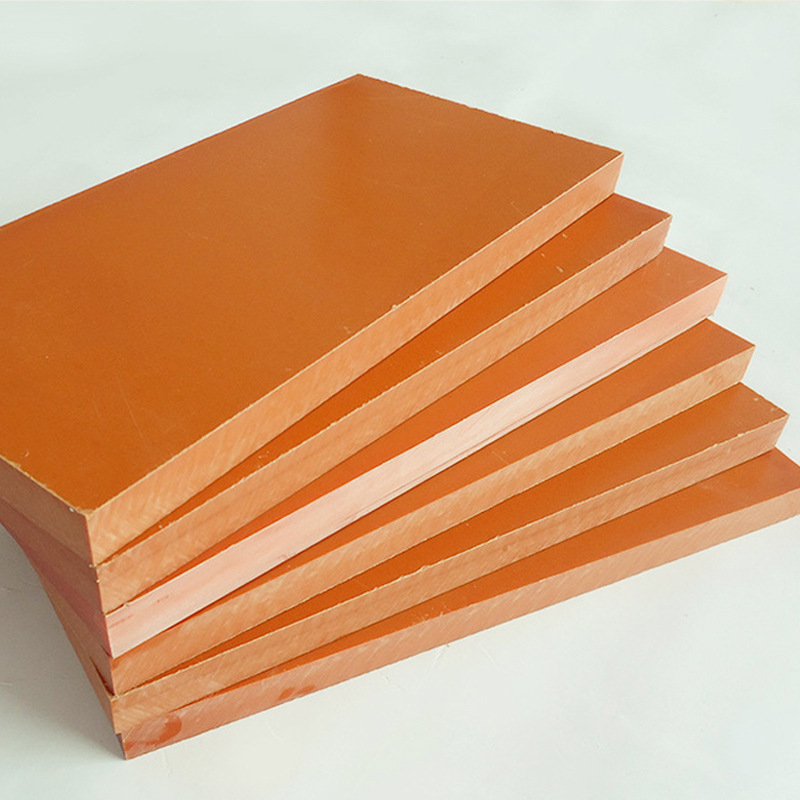

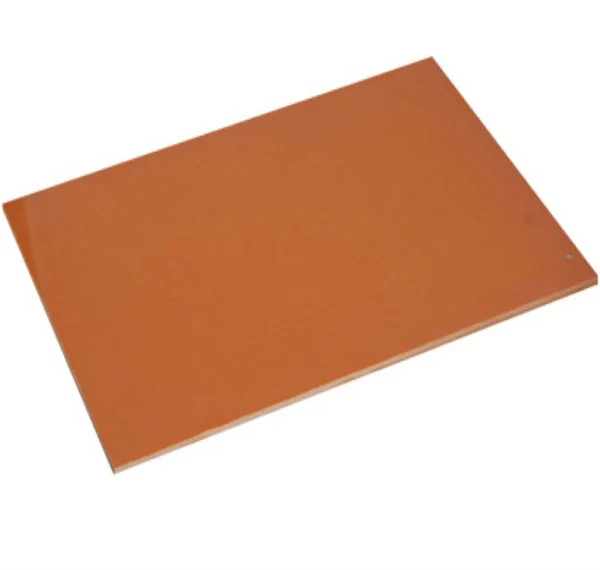

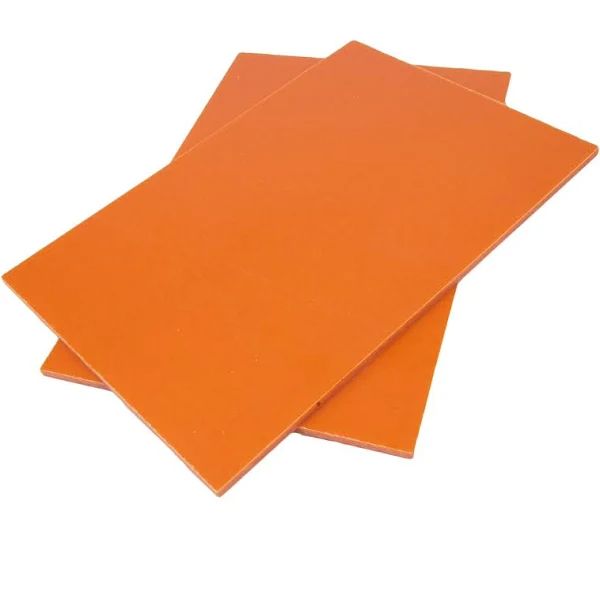

Phenolic Pepa Laminate

Ruzivo rwekutanga:
Mucherechedzo: Hongda
Zvishandiso: Phenolic Resin
Rudzi Rwakasikwa: Dema uye Orange
Ukobvu: 2mm --- 100mm
Nguva dzose Size: 1040mm * 2080mm
Custom Size: 1220mm * 2440mm
Packaging: Kugara kurongedza, Dzivirira nePallet
Kubudirira: 13000 Matani pagore
Zvifambiso: Ocean, Land, Air
Mutero: T / T
MOQ: 500KG

  • Fast Delivery
  • Quality Panga
  • 24/7 Vatengi Sevhisi

Product Introduction

Kujekesa Chirevo


  phenolic bepa Laminates chinhu chakagadzirwa chemakemikari. Insulation Bakelite Sheet, Yakanaka mechanical simba, anti-static, yepakati magetsi ekudzivirira, yakagadzirwa ne insulating impregnated bepa rakaiswa ne phenolic resin, yakabikwa uye inopisa-yakadzvanywa. Mushure mekupisa uye kuumbwa, inosimba uye haigoni kuumbwa mune zvimwe zvinhu. Iine maitiro ekusava neabsorbent, kwete-conductive, kupisa kwekushisa kwepamusoro uye simba guru. Bakelite Sheet inokodzera insulating zvimiro zvezvikamu mumamotor nemidziyo yemagetsi ine yakakwira mechanic performance zvinodiwa, uye inogona kushandiswa mutransformer mafuta.



mamiriro


  Yakanaka magetsi emagetsi uye yakanaka machining kuita pasi pekamuri tembiricha, density iri 1.45 g/cm3, angularity ≤ 3 ‰, ine yakanakisa magetsi, mechanical uye kugadzirisa zvinhu. Inogona kushandiswa mumafuta etransformer.



Applications


  Phenolic Pepa Laminate inoshandiswa zvakanyanya kune zvikamu mumotokari, midziyo yemagetsi uye insulation system iyo ine zvinodiwa zvakanyanya pamichina yemidziyo. Iine simba rakanaka remagetsi. Inoshandawo kune PCB yekuchera backing sheet, kugovera switch box, fixture board, mold plate, high voltage uye yakaderera-voltage kugovera kabhineti, packer, magetsi muzinga, mota, muchina mold, PCB, ICT fixture, muchina wekugadzira, muchina wekuchera, pamusoro. kukuya ndiro, transformer mafuta.



Technical Data


HERE

TEST ZVINHU

UNIT

TEST RESULT

MUEDZO NZIRA

1

Kubvisa Mvura

mg

115

GB / T 1303.2-2009

2

Density

g / cm3

1.33

3

Insulation Resistance mushure mekunyura

Ω

2.1*108

4

Vertical Layer Breakdown Voltage (90℃ + 2℃, 25# transformer mafuta, 20s nhanho nhanho inowedzera, φ25mm/φ75mm silinda electrode system)

kV / mm

2.7

5

Parallel Layer Breakdown Voltage (90 ℃ + 2℃, 25# transformer mafuta, 20s nhanho nhanho inowedzera, φ130mm/φ130mm flat plate electrode system)

KV

11.8

6

Tensile Strength

MPa

119

7

Parallel Layer Impact Simba

(Inongotsigirwa Beam, Gap)

KJ/m²

3.99

8

Vertical Layer Modulus yeElasticity muFlexure (155℃ ± 2℃)

MPa

3.98*103

9

Kubhenda Simba Perpendicular kune Laminations

MPa

168

10

Adhesive Simba

N

3438

GB / T 1303.6-2009

CHIREVO:

1. NO.1 saizi yemuenzaniso ndeye (49.78 ~ 49.91) mm * (50.04 ~ 50.11) mm * (2.53 ~ 2.55) mm;

2. NO.4 muenzaniso ukobvu ndiko (2.12 ~ 2.15) mm;

3. NO.5 saizi yemuenzaniso ndeye (100.60 ~ 100.65) mm * (25.25 ~ 25.27) mm * (10.15 ~ 10.18) mm;

4. NO.10 saizi yemuenzaniso ndeye (25.25 ~ 25.58) mm * (25.23 ~ 25.27) mm * (10.02 ~ 10.04) mm;

Process Part


Phenolic Pepa Laminate

Phenolic Pepa Laminate

Phenolic Pepa Laminate

Tinogona kupa CNC machining sevhisi sezvinodiwa zvako, senge kunyora uye kucheka.

Production Process


Phenolic Pepa Laminate

Pasuru uye Kutumira


Phenolic Pepa Laminate
